Twee Kleur 135mm 7kg/H-Wafelkegel die Machine maken

Twee Kleur 135mm 7kg/H-Wafelkegel die Machine maken

Twee Kleur 135mm 7kg/H-Wafelkegel die Machine maken
Two Color 135mm 7kg/H Waffle Cone Making Machine
Twee Kleur 135mm 7kg/H-Wafelkegel die Machine maken
Productdetails:
Plaats van herkomst: CHINA
Merknaam: GongHeXiang
Certificering: ISO
Modelnummer: SD80-37x2
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: Overeen te komen
Prijs: Negotiable
Verpakking Details: RUW PAK
Levertijd: 30-45days
Betalingscondities: T/T
Levering vermogen: voldoende levering
Contact
Gedetailleerde productomschrijving
NAAM: Het Bakselmachine van de suikerkegel Voltage: 380v
Inputmacht: 3.37kw LPG-consumptie: 7-8kg/h
Netto gewicht: 4500kg Materiaal: Roestvrij staal
Certificering: ISO PLC Controle: Schneider
PROCES: Baksel Type: Roosterende machine
Zeer belangrijke Verkopende Punten: energie - besparing
Hoog licht:

7kg/H wafelkegel die Machine maken

,

135mm Wafelkegel die Machine maken

,

Twee Kleur Sugar Cone Making Machine



Sugar Cone Baking Machine Introduction

SD80 series Sugar Cone Baking Machine is a kind of machine which controlled by PLC,with complete automatization ,high capacity and stable performance.It is very popular all over the world.


Twee Kleur 135mm 7kg/H-Wafelkegel die Machine maken 0

Twee Kleur 135mm 7kg/H-Wafelkegel die Machine maken 1


Quick Detail

The stirred dough is sent to the baking plate bottom plate by the blanking pump, and the panel of the baking plate is automatically closed, and the dough cake is shaped according to the thickness of the set cake, and then the rotating plate is turned into a baking plate. It is baked in an oven consisting of upper and lower fire nozzles. After baking, the noodle paste has become a dough cake. The robot cake accurately feeds the dough cake into the roll mold and rolls it into a finished product. The finished product is delivered.





 Sugar Cone Baking Machine Feature



1.The machine is suitable for making ice cream wafer cones. Cone degree, weight, thickness and pattern spacing customized according to customer demand.

2.The ice cream cone making machine can produce ice cream cones with large production, one hour can make 3500-4000 pcs, other models can meet different customers’ demand.

3.The main part of this machine made by the high quality stainless steel 304, such as top cover, machine shell, etc.





Process:

1. The stirred dough is delivered to the baking pans by the slurry pump.



2. The upper and lower plates of the baking plate are automatically closed, and the cakes are baked according to the preset thickness of the cakes.



3. When the baking plate turned to the position of the manipulator(it has been baked already), and the manipulator absorbs baked cake sends them to the forming mold.

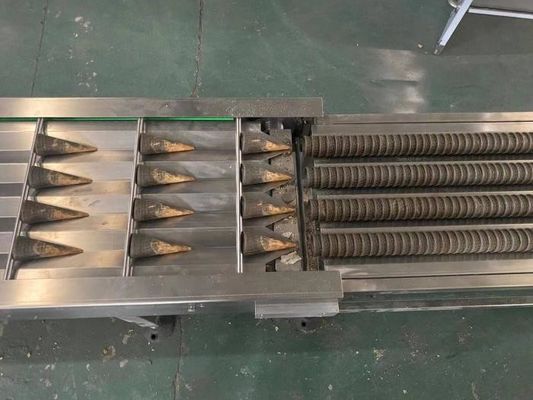

4. The forming mold rolls the cake into a cone shape, and then sends it to the conveyor belt for the arrangement

.

Twee Kleur 135mm 7kg/H-Wafelkegel die Machine maken 2

Sugar Cone Baking Machine Parameters

Name SD80-37x2
Voltage 380v Product size 135mm
Total power 3.37kw Output/hour 3500-4000pcs/h
LPG consumption 7-8kg/h Electrical accessories Schneider
Machine dimension L8XW2.1XH2M PLC controller Schneider
Net weight 4500kg Controller Schneider




FAQ

1. Ask:What is your guarantee of machine ?
Answer:usually our guarantee is 1 years.
2. Can you arrange your technicians to install the machine for us?
Answer:Yes,We will assign our engineers to go abroad for installing machines for our users.

3. Ask:how to install the machine ?

Answer:we can intrust the install the machine by vedio,email,picture.....if large project,we can arrange the worker help you to install it in your country .

4.Ask: Are you factory or trading company?

Answer: We are a factory in this field nearly 20 years.

5.Ask:Are there any accessories for the purchase of the machine?

Answer:Yes,We will give away random accessories and some installation tools.
